전원공급장치

방산 분야 전원 제어기술을 바탕으로 고효율, 저발열의 신뢰성이 있는 전원장치를 공급합니다.

높은 품질 수준을 요구하는 전원 모듈과 고객 시스템 맞춤형 전원부 설계 능력을 보유하고 있습니다.

Power supplies

  • 플라즈마 파워 전원공급 시스템

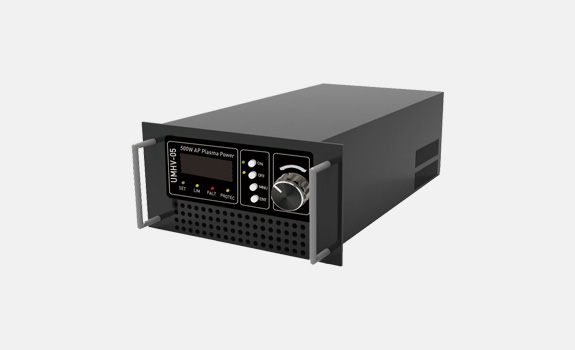

    UMHV-05

    Specification

    • - Output power : 500W
    • - Max. output Voltage : 10kV(Peak)
    • - Adjustable frequency(20 ~ 60KHz)
    • - Interface : RS-485 / 232 / Remote / Local / MFC
    • - Air, N2 mass flow control
    • - Length(mm) : 257(W) x 132(H) x 544(D)
    • - Weight : 8.5kg
    • - Operation temp : +5℃ ~ 40℃
    • - Input : Single-Phase, 220VAC, 50~60Hz, < 3.5A (nominal), Fuse 10A
  • 수소연료전지시스템

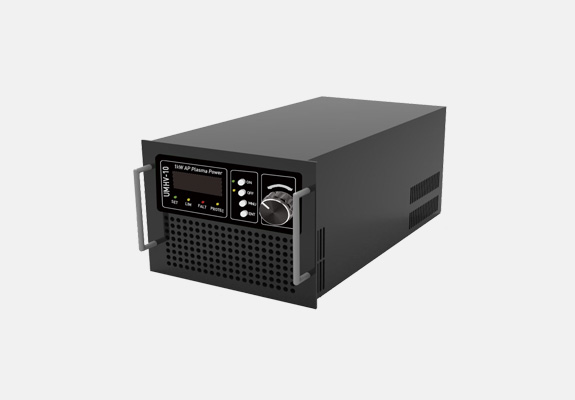

    UMHV-10

    Specification

    • - Output power : 1kW
    • - Max. output Voltage : 10kV(Peak)
    • - Adjustable frequency(20 ~ 60KHz)
    • - Interface : RS-485 / 232 / Remote / Local / MFC
    • - Air, N2 mass flow control
    • - Length(mm) : 257(W) x 177(H) x 544(D)
    • - Weight : 9.5kg
    • - Operation temp : +5℃ ~ 40℃
    • - Input : Single-Phase, 220VAC, 50~60Hz, < 7.0A (nominal),Fuse 15A
  • 레이저전원공급시스템

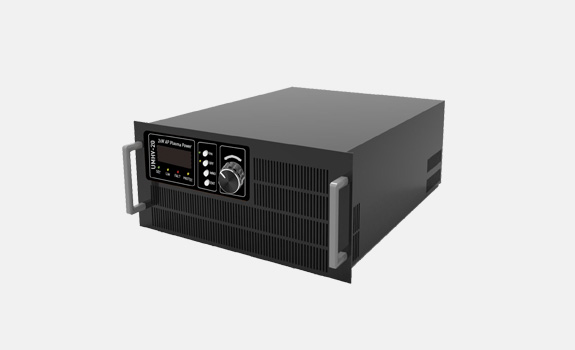

    UMHV-20

    Specification

    • - Output power : 2kW
    • - Max. output Voltage : 10kV(Peak)
    • - Adjustable frequency(20 ~ 60KHz)
    • - Interface : RS-485 / 232 / Remote / Local / MFC
    • - Air, N2 mass flow control
    • - Length(mm) : 483(W) x 175(H) x 590(D)
    • - Weight : 28.0kg
    • - Operation temp : +5℃ ~ 40℃
    • - Input : Single-Phase, 220VAC, 50~60Hz, < 15.0A (nominal), C/P 30A
  • 레이저전원공급시스템

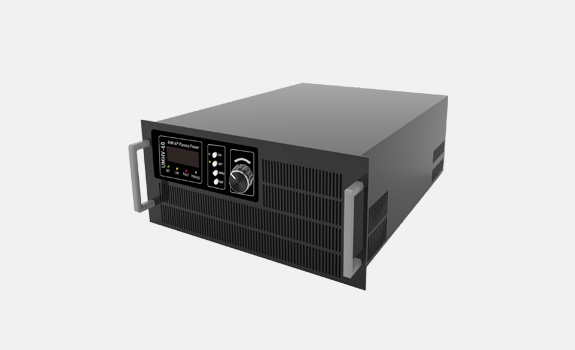

    UMHV-60

    Specification

    • - Output power : 6kW
    • - Max. output Voltage : 10kV(Peak) , 15kV(Optional)
    • - Adjustable frequency(20 ~ 60KHz)
    • - Interface : RS-485 / 232 / Remote / Local / MFC
    • - Air, N2 mass flow control
    • - Length(mm) : 483(W) x 177(H) x 645(D)
    • - Weight : 32.0kg
    • - Operation temp : +5℃ ~ 40℃
    • - Input : Three-Phase, 220VAC, 50~60Hz, < 20.0A (nominal), C/P 30A
  • 레이저전원공급시스템

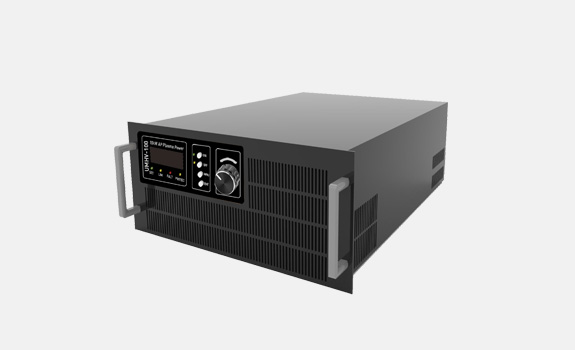

    UMHV-100

    Specification

    • - Output power : 10kW
    • - Max. output Voltage : 10kV(Peak) , 15kV(Optional)
    • - Adjustable frequency(20 ~ 60KHz)
    • - Interface : RS-485 / 232 / Remote / Local / MFC
    • - Air, N2 mass flow control
    • - Length(mm) : 483(W) x 222(H) x 645(D)
    • - Weight : 45.0kg
    • - Operation temp : +5℃ ~ 40℃
    • - Input : Three-Phase, 220VAC, 50~60Hz, < 30.0A (nominal), C/P 40A

Fuel cell components

  • 플라즈마 파워 전원공급 시스템

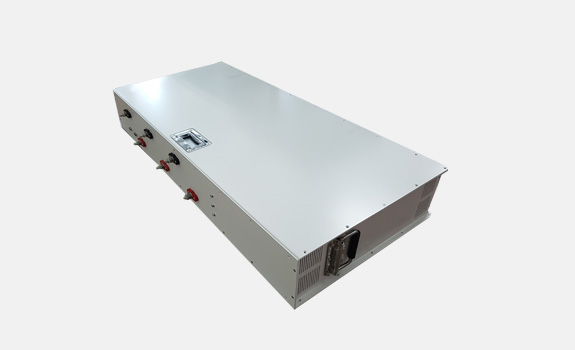

    Battery Pack

    Specification

    • - Battery capacity : 51.8V / 200Ah(MAX 3C)
    • - Interface : CAN 2.0B 500kBPS 1CH / RS-232 1CH
    • - Protection : Over voltage / Low voltage / Over current / Over Heating
    • - Length(mm) : 1019(W) x 122(H) x 502(D)
    • - Weight : 98.0kg
    • - Operation temp : 0℃ ~ 40℃ (Charge) , -20℃ ~ 60℃ (Discharge)
  • 수소연료전지시스템

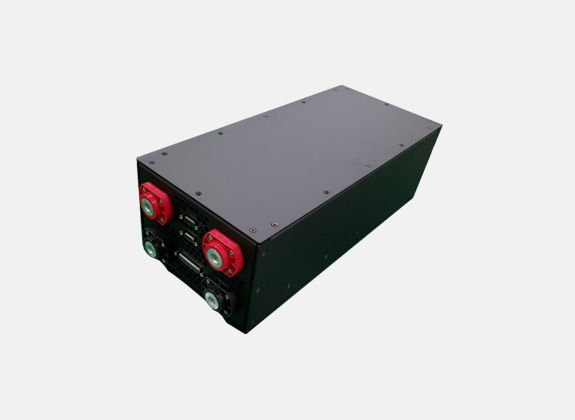

    DC/DC ConverterBattery Charger

    Specification

    • - Input : 31 ~ 50VDC / 200A
    • - Output : 42 ~ 54VDC / 150A
    • - Buck-boost, MPPT
    • - Interface : CAN 2.0B / RS-232
    • - Ripple : ±6%
    • - Efficiency : > 93%
    • - Switching frequency : 25kHz
    • - Length(mm) : 187(W) x 132(H) x 430(D)
    • - Weight : 16.0kg
    • - Operation temp : -20℃ ~ 45℃
  • 레이저전원공급시스템

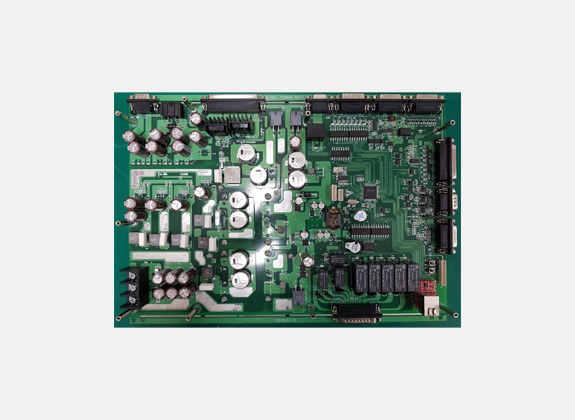

    TCU(Total Control Unit)Fuel cell system control and BOP power supply

    Specification

    • - Processor : ARM
    • - Interface : LAN 1CH / RS-232 2CH / DIO / CAN 2.0B / AD,DA / RS485 (All interface isolated)
    • - Input voltage : 48V ± 5V
    • - Output voltage : 12V/25A(Isolated), 48V/12A(Isolated), 48V(Non-Isolated), 24V(Isolated), 5V(Isolated)
    • - Protection : Over voltage / Low voltage / Over current / Over Heating
    • - Length(mm) : 320(W) x 240(H) x 50(D)
    • - Operation temp : -20℃ ~ 45℃
